使用C++在控制台界面显示图片

编程学习2021-07-13145151


一直面对黑乎乎的控制台界面是不是很厌烦了?要是控制台界面也能显示图片甚至作为背景是不是很有意思,下面就搞起来。

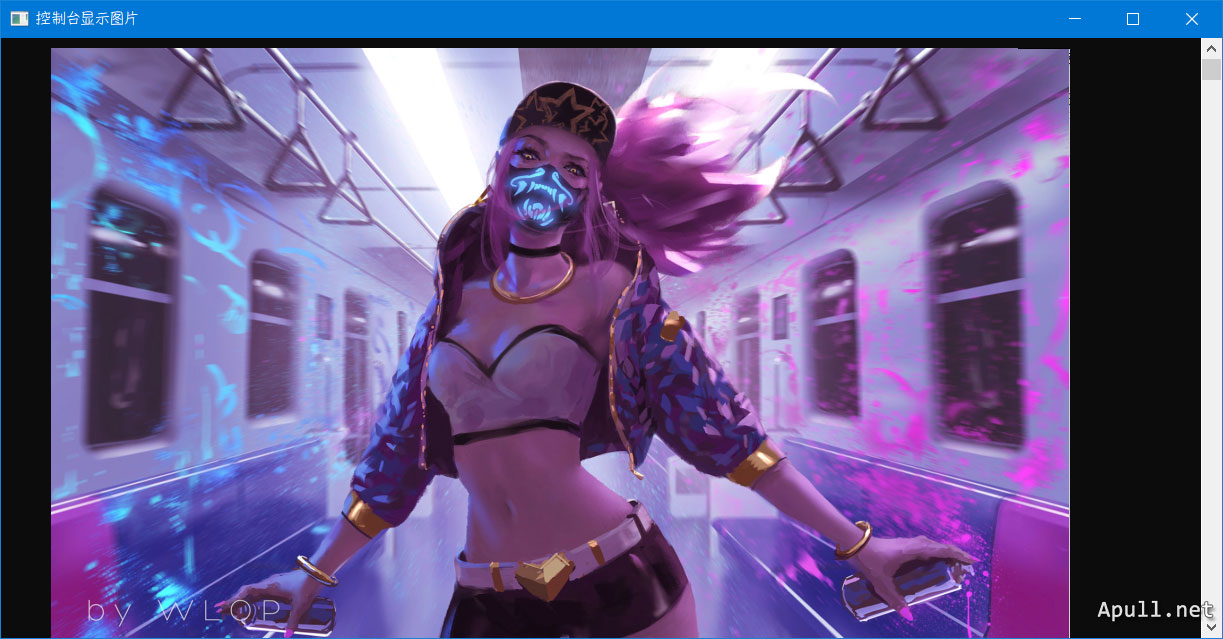

先来看看效果:

控制台显示图片.png 使用C++在控制台界面显示图片  编程 技术 C++ 第1张


上图是使用VS Code+vc6编译生成的。

下面的代码需要保存为cpp文件,使用C++编译器编译。

#include <windows.h>
#include <stdio.h>

int main()
{
    FILE *file = NULL;
    file = fopen("d:\\Documents\\Desktop\\tt.bmp", "r"); // 只能显示bmp格式图片
    if (!file)
    {
        printf("图片文件打开失败!\n");
        return -1;
    }

    fseek(file, 0, SEEK_END);
    size_t size = ftell(file);

    LPBITMAPINFOHEADER bi = (LPBITMAPINFOHEADER)malloc(size);
    if (!bi)
    {
        printf("内存分配失败!\n");
        return -2;
    }

    fseek(file, sizeof(BITMAPFILEHEADER), SEEK_SET);
    fread(bi, 1, size, file);

    char Title[255] = {0};
    GetConsoleTitleA(Title, 255);
    HDC dc = GetDC(FindWindowA(0, Title));
    SetConsoleTitleA("控制台显示图片");

    do
    {
        SetDIBitsToDevice(dc, 50, 10, bi->biWidth, bi->biHeight, 0, -0, 0, bi->biHeight, bi + 1, (LPBITMAPINFO)bi, 0);
    } while (printf("%c", getchar()));

    getchar();
    return 0;
}


当控制台界面上下滚动时图片会丢失,需要按回车恢复图片显示。
